Wingspan: 90cm
length: 86cm
Propeller diameter: 29cm
Functions:
Motorised Engine and Propeller.
Motorised Landing Gear.
Working Rudder, Elevator, and ailerons controlled from the cockpit.
Now we move on to the pictures. First up a few different view of it overall.
Next up a close up of all the functions and interesting bits.
A close up of the propeller so you can see the design a bit better. I'm quite pleased with how this turned out. |
A close up of the engine and XL motor that drives the engine and propeller. The final gear ratio is 5.001:1. |
The left side is for the ailerons and the right side is the landing gear. |
Close up of the M motor that powers the landing gear. |
Close up of the control surface control system. |

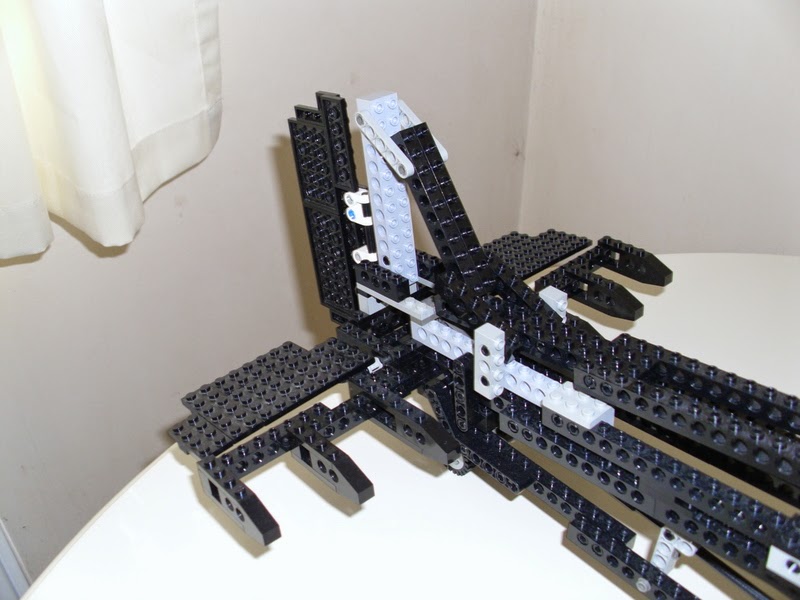

The tail section. This was a bit of a pain to get right. |
The rear of the tail section. |
The original way I did this was with gears but that made the Elevators way to loose so I came up with this instead. |

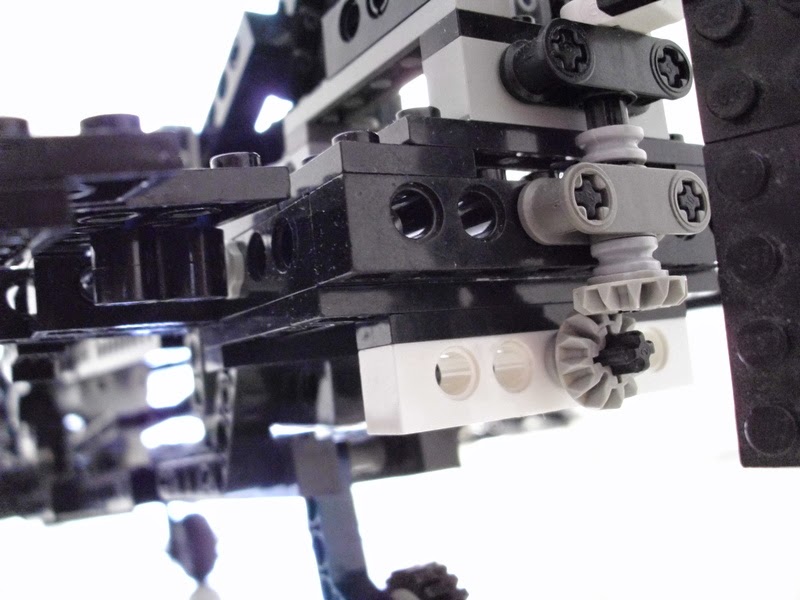

A close up of the landing gear down. |
A close up of inside the Cockpit. |
A view from the cockpit as if you where sitting in it. |
Finally a video of all the functions.
And thats it. I hope you like it. :)
